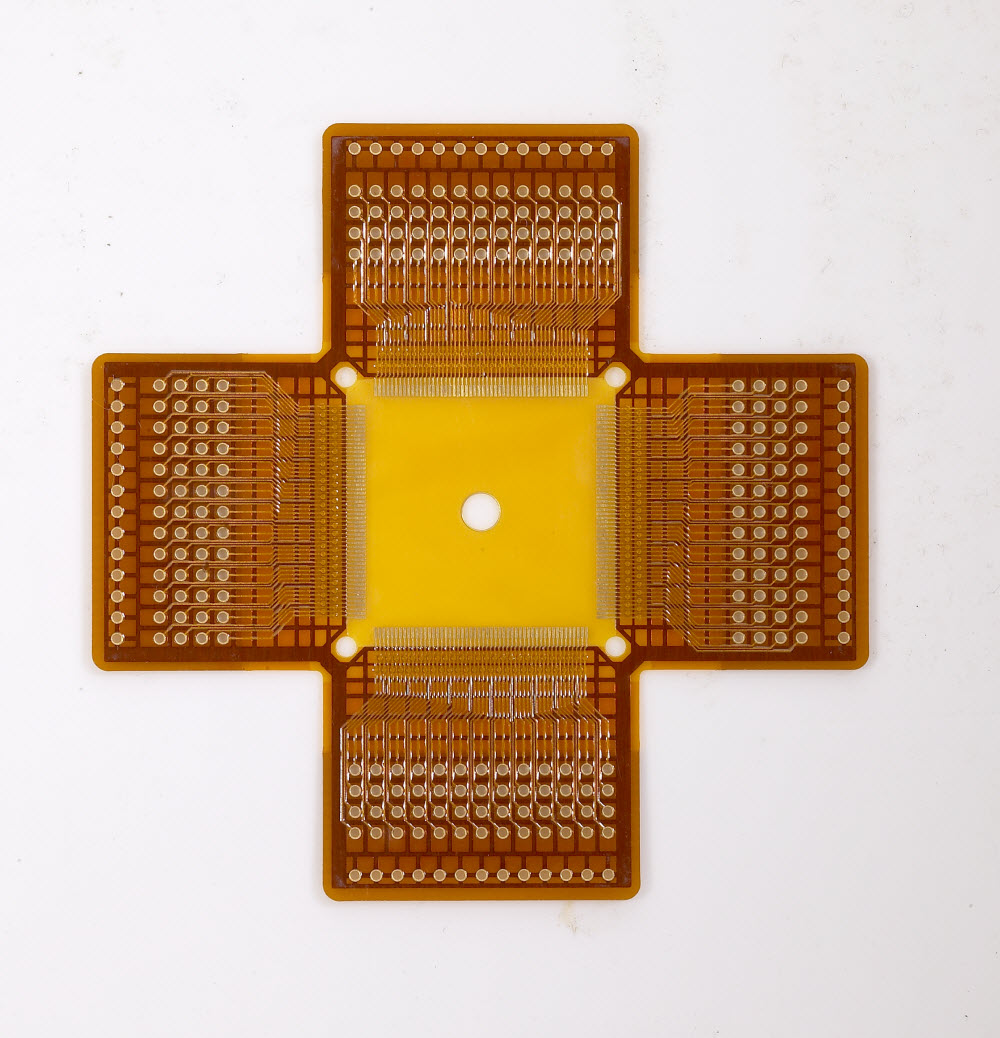

6 Layer Flex PCB with stiffener 3 mile LINE / 3 mil space

At Rigiflex, we provide a variety of manufacturing options so that the flex PCB will meet application requirements, and provide a high level of performance. One such option is the use of stiffeners in the PCB. For applications where a great amount of precision is required, we design the PCB with stiffeners that are strategically placed in some flex areas. This makes those areas more rigid than the rest of the PCB. In addition, 3 mile LINE and 3 mil space is created during the tracing and etching process. This strengthens the PCB in terms of design and adds to its performance in an application.

6 Layer Flex PCB with Stiffener 3 mile LINE & 3 mil Space
Model:flex board-6L
Layers:6
Material:Polyimide
Surface treatment:immersion gold
Width/space:4/3mil
Finish thickness:0.2mm
Min Hot:0.3mm
OEM Custom Service
Board Thickness0.5mm~3.0mm (0.02″~0.12″)
Copper thickness:0.5 OZ, 1.0 OZ, 2.0 OZ, 3.0 OZ, up to 6 OZ
Outline: Routing, punching, V-Cut
Solder mask: White/Black/Blue/Green/Red, Taiyo PSR4000 white
Legend/Silkscreen Color: Black/White
Surface finishing: Immersion Gold, HASL, OSP
Max Panel size:18″*24″
Packing: Vacuum/Plastic bag
Layer: 1 – 20 layers
