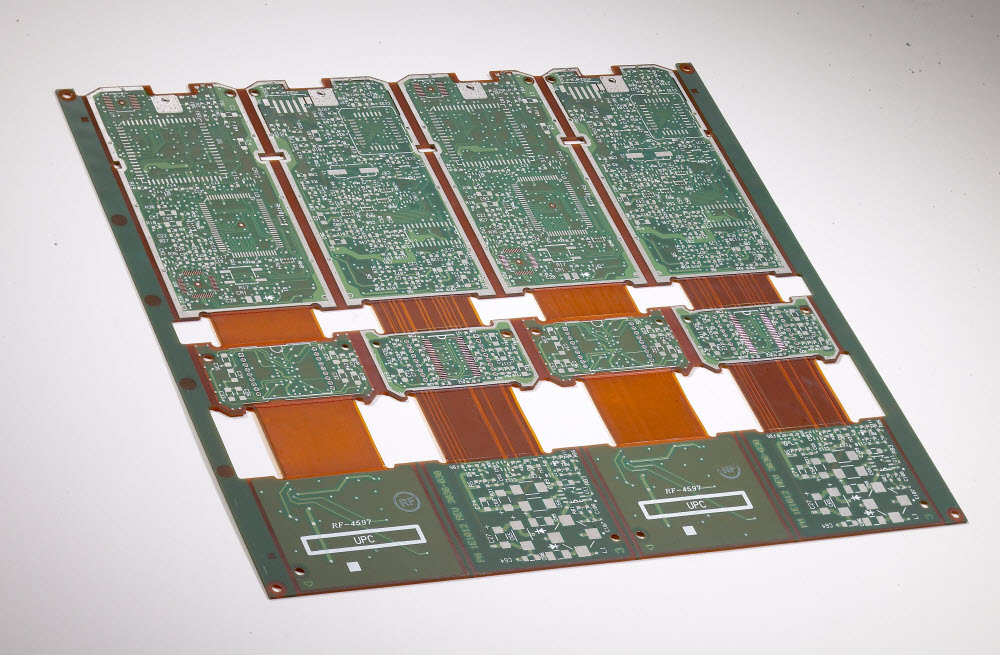

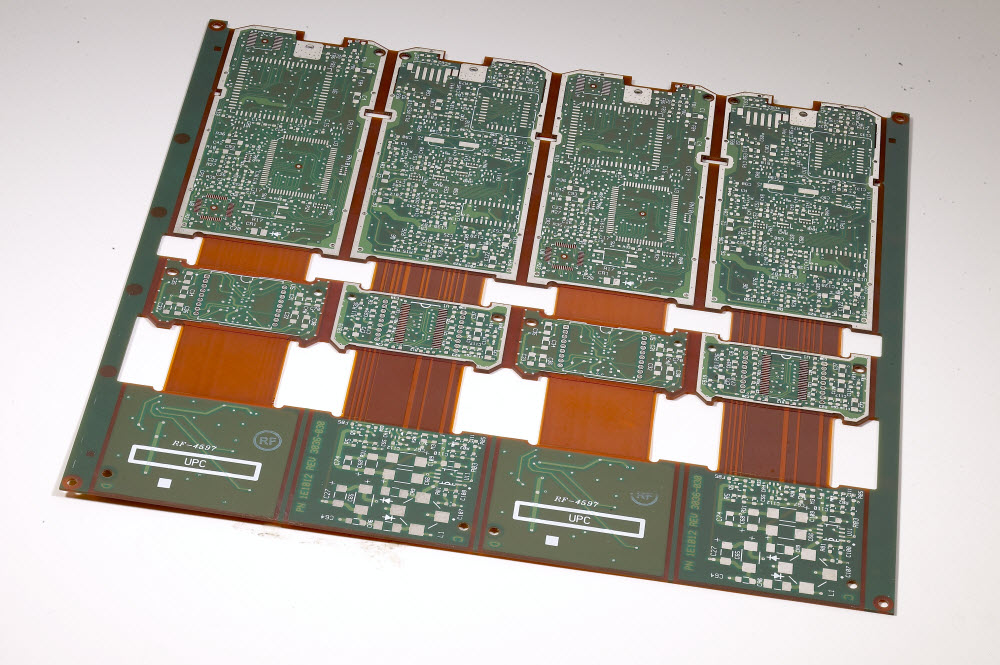

8 Layer Rigid-Flex PCB in Panel Form



We at Rigiflex provide 8 layer rigid-flex PCB designs in panel form. The panel provides a variety of advantages to the PCB. Panel forms allow for easier component assembly, thus decreasing the overall delivery time. A good panel layout will also hasten the time taken for testing and inspection, leading to a decrease in time-to-market risks. Proper planning of the panel layout can allow the engineer to increase the number of circuits in the PCB. The circuits can be designed to lay closely together, allowing the maximum use of the panel space. These various steps results in the reduction of manufacturing costs as well as client expenditure.

8 Layer Rigid-Flex PCB in Panel Form
Model:Rigid-flex board-8L
Layers:8
Material:FR4+Polyimide
Surface treatment:HASL
Width/space:4/4mil
Finish thickness:0.2mm(flex), 1.6mm
Min Hot:0.4mm
OEM Custom Service
Board Thickness0.5mm~3.0mm (0.02″~0.12″)
Copper thickness:0.5 OZ, 1.0 OZ, 2.0 OZ, 3.0 OZ, up to 6 OZ
Outline: Routing, punching, V-Cut
Solder mask: White/Black/Blue/Green/Red, Taiyo PSR4000 white
Legend/Silkscreen Color: Black/White
Surface finishing: Immersion Gold, HASL, OSP
Max Panel size:18″*24″
Packing: Vacuum/Plastic bag
Layer: 1 – 20 layers
