14 Layer FR4 Rigid PCB



Rigid printed circuit boards are being used extensively in a wide range of applications. There are several manufacturers in the US, who will claim to provide high-quality designs in FR4 rigid PCBs. However, there are very few manufacturers, who actually go on providing these PCBs of highest industry standards. Rigiflex can help you design custom 14 layer rigid printed circuit board in the FR4 material.

FR4 is a grade of material used for manufacturing printed circuit boards. The FR4 materials are flame retardant, which makes them ideal for use in the PCBs. Besides, they are glass reinforced and epoxy laminated. A couple of benefits of using FR4 as a primary material, include their exceptional mechanical strength, and capability to deliver a good performance as an electric insulator. The FR4 epoxy panels are laminated with thin layers of copper foils. Thus, these glass reinforced laminates are also sometimes referred to as copper-clad laminates. The PCBs using FR4 materials are capable of delivering high performance in applications.

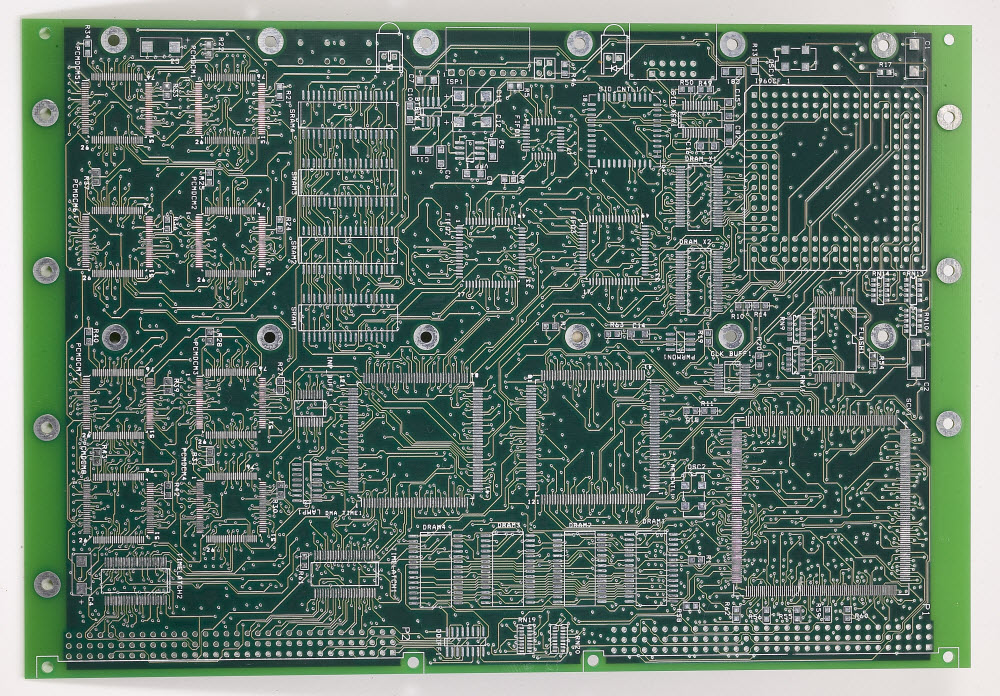

14 Layer FR4 Rigid PCB
Model: 14L PCB
Base Material: 14L,FR4, TG170
Board Thickness: 2.0 mm
Copper Thickness: 1/H…H/1OZ
Min. Hole Size: 3mil (0.076mm)
Min. Line Width/ Spacing: 3/3 mil
Solder mask/ Silkscreen Color: Green/White
Surface Finishing: Gold

Rigiflex allows you to customize your printed circuit board, depending on the application requirements. The copper thickness of these PCBs can vary from 1/H to H/1OZ. The surface finish options include gold, immersion gold/silver/tin, HASL, HASL lead-free, carbon ink, flash gold, and more. Other than FR4 material, we can manufacture PCBs with TG170 and 14L as base materials. The thickness of this 14 layer FR4 rigid PCB is 2.0 mm. The minimum line width spacing, and minimum hole size of these printed circuit boards is 3 mil. The solder mask or silkscreen color options include green, and white.

We can help you in designing a customized printed circuit board. Our team of expert and knowledgeable professionals work hard to meet the client requirements. The 14 layer rigid PCBs are available with us at extremely affordable prices. Get in touch with our professionals, and let us know your rigid PCB requirements. At Rigiflex, the quality of a product delivered is of utmost importance for us. We would be happy to help you.

Rigid PCB Capability
No. Item Technical data
1 Layer Count 1-30Layers
2 HDI Type 1+N+1, 2+N+2
3 Material CEM3, FR-4, Halogen Free, Aluminum-based, Teflon, Rogers, Getek, Nelco, PTFE, Polyimide etc
4 Board thickness 0.2~5.0mm
5 Board Size Max. 18”x24”
Min. 30x50mm
6 Copper Thickness Outer layer 1oz~6oz
Inner layer Hoz~5oz
7 Min. Line Width/Space 4/4mil(0.1/0.1mm)
8 Finished Hole size Mechanical 0.20~6.30mm
Laser 5mil, 6mil
9 Blind/buried via(Mechanical) 0.2mm (min)
10 Aspect Ratio 10:1
11 Hole Dia.Tolerance PTH ±0.075mm(3mil)
NPTH ±0.05mm (2mil)
12 Hole Position Tolerance ±0.05mm (2mil)
13 Bow & Twist ≤0.75%
14 Peel strength 1.4N/mm
15 Thermal stress 288℃ & 20 Sec
16 Test Voltage 50-300V
17 Soldermask color Green, Red, Blue, Black, White
18 Silkscreen color White, Black, Yellow
19 Min. S/M Pitch 4mil(0.1mm)
20 Min. Solder Mask Clearance 0.05mm
21 Impedance Control Tolerance +/-10%
22 Outline Tolerance ±0.10mm (4mil)
23 Surface Finish HASL, Lead free HASL, Immersion Gold/Tin/Silver, OSP, Flash Gold, Gold fingers, Plating Hard Gold, Carbon lnk, Peelable mask
