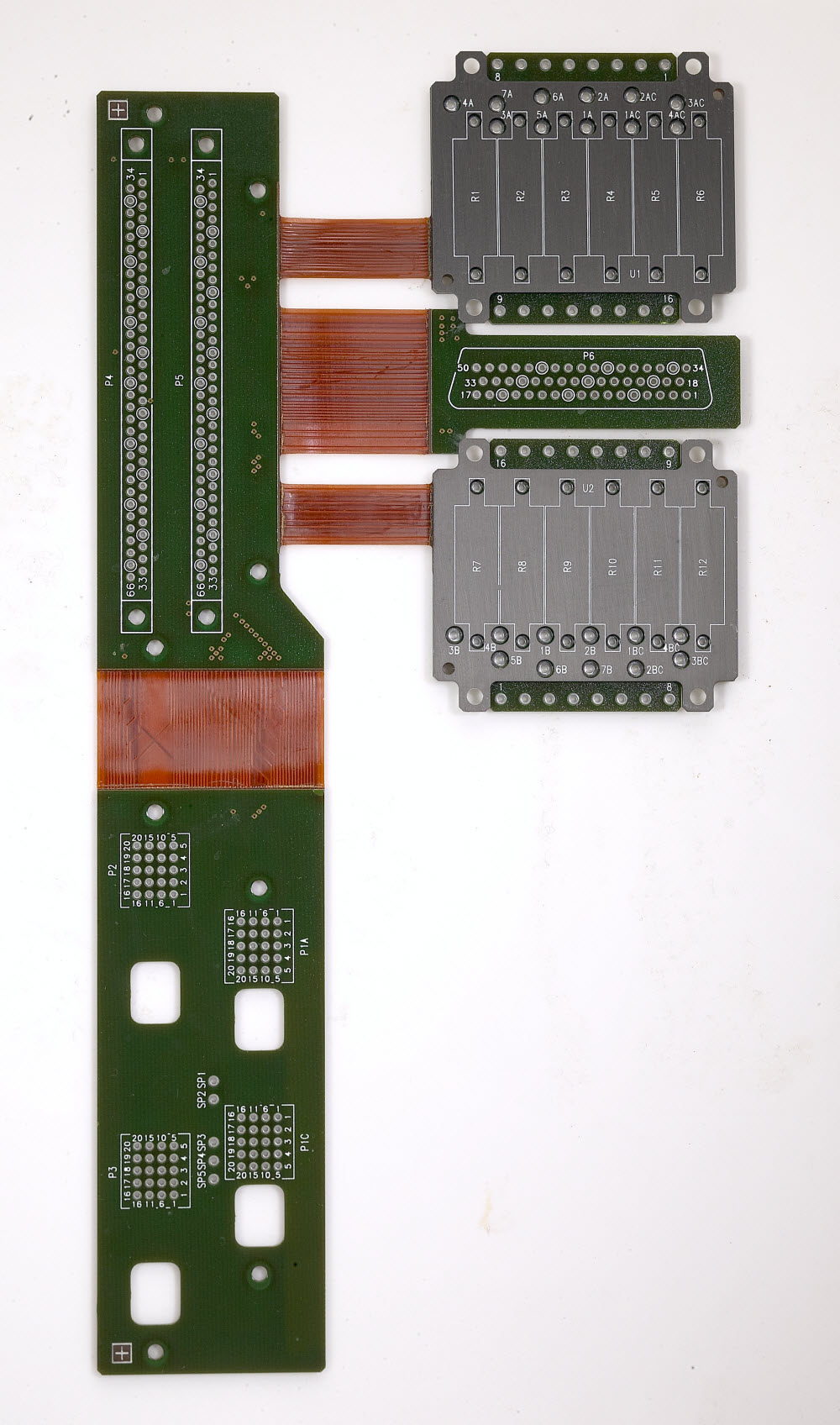

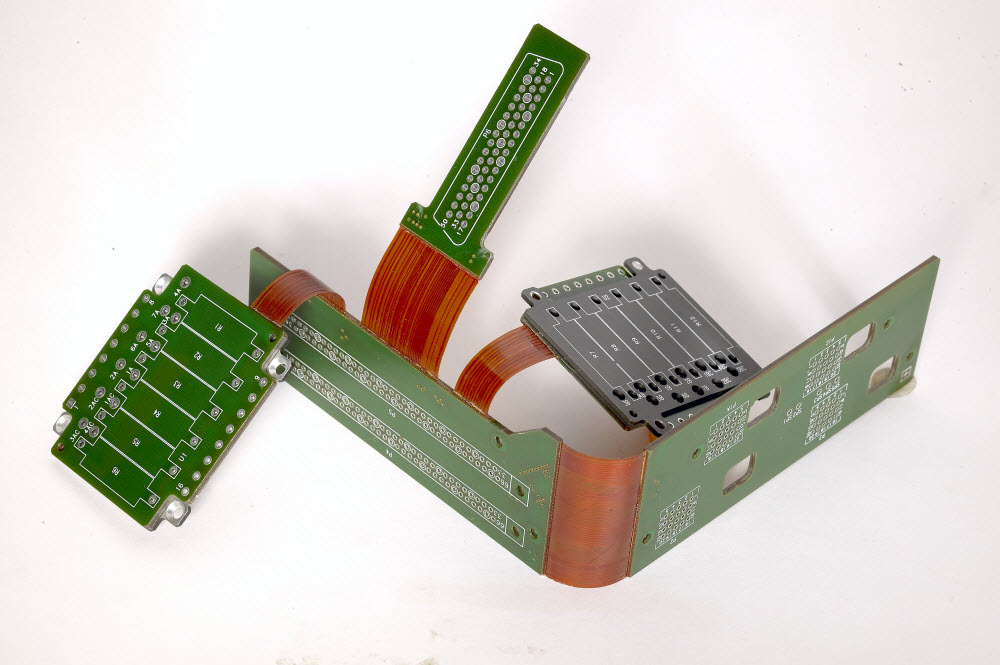

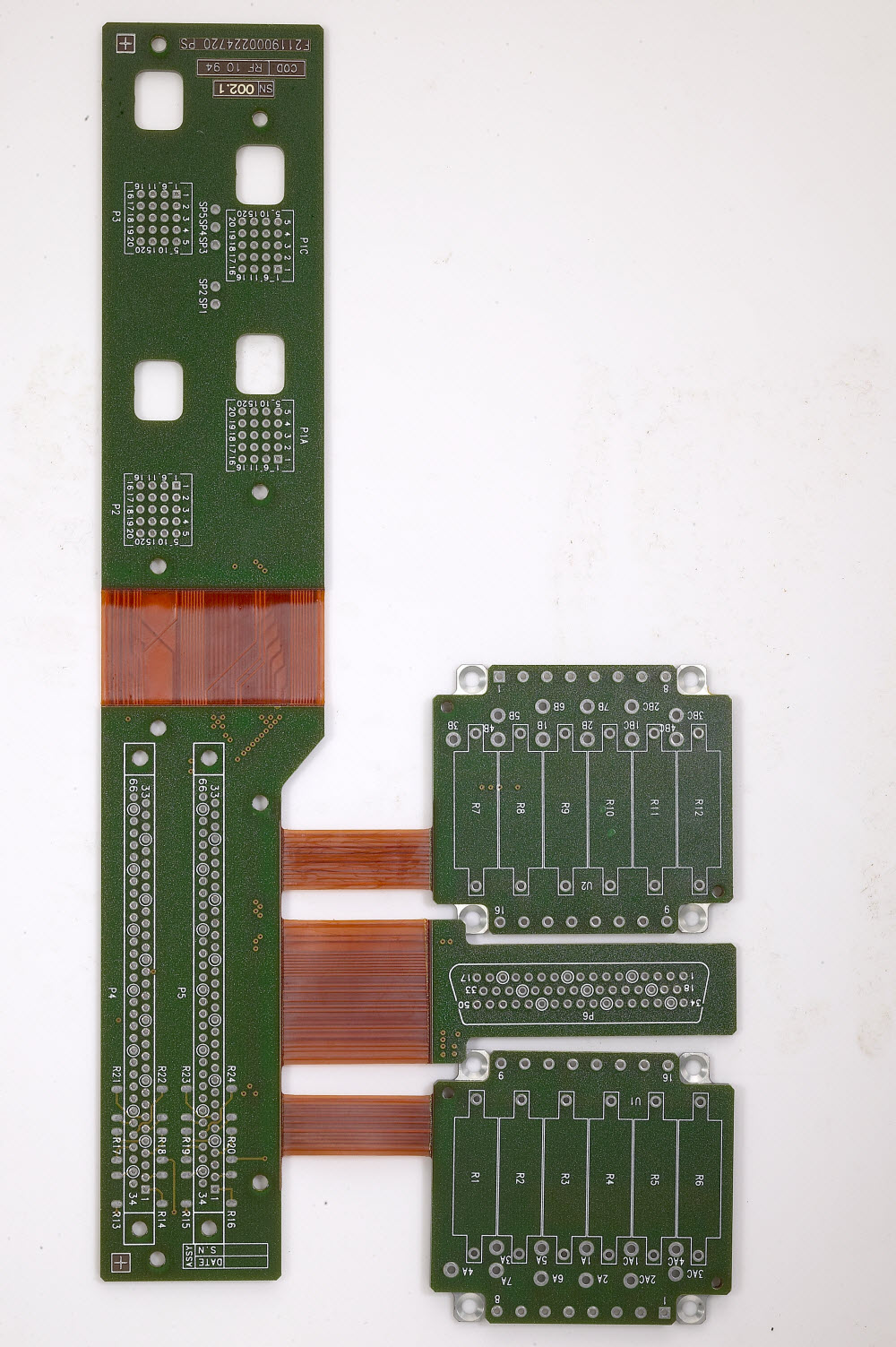

12 Layer Rigid-Flex PCB with Heat Sink



Rigid flex printed circuit boards are the improved printed circuit board designs, where multiple layers of rigid copper and flexible layers are organized one above the other. These circuit boards are designed to work with complex electronics. Rigiflex has gained recognition as rigid-flex PCB manufacturer in the US. Our 12 layer rigid-flex PCB with heat sink help avoid overheating, thereby ensuring efficient performance of chips, connectors, traces, and solder joints.

The PCB comprises a combination of polyimide and FR4 material, which offers excellent electrical insulation, and thermal stability. The heat sink components equipped to the PCB are designed to transfer the heat produced from a device to a fluid medium like air. Sometimes, coolants and water are also fused with air. The use of this medium enables the heat to dissipate from the printed circuit board. Other benefits of heat sinks include excellent thermal conductivity, enhanced surface area in connection to fluid medium, and improved performance of the PCBs. The PCB has two layers dedicated to ground and power. The power and ground layers allow an even distribution of heat.

Our advanced fabrication facilities help us design and manufacture PCBs in thickness ranging from 0.02ʺ to 0.12ʺ. Also, we can provide copper layers in thicknesses 0.5, 1.0, 2.0, 3.0 up to 6 Oz. The finish thickness is 0.2mm (flex), 1.6mm, and maximum panel size is 18ʺ X 24ʺ. We provide a wide variety of solder mask colors, including white, blue, black, red, green, and Taiyo PSR4000 white. There is also a huge variety, when it comes to surface finishing, such as HASL, immersion gold, OSP, etc. All printed circuit boards are vacuum packed or packed individually in plastic bags to avoid damages while transportation.

12 Layer Rigid-Flex PCB with Heat Sink
Model:Rigid-flex board-12L
Layers:12
Material:FR4+Polyimide
Surface treatment:HASL
4/4mil
Finish thickness:0.2mm(flex), 1.6mm
Min Hot:0.4mm
OEM Custom Service
Board Thickness0.5mm~3.0mm (0.02″~0.12″)
Copper thickness:0.5 OZ, 1.0 OZ, 2.0 OZ, 3.0 OZ, up to 6 OZ
Outline:Routing, punching, V-Cut
Solder mask:White/Black/Blue/Green/Red, Taiyo PSR4000 white
Legend/Silkscreen Color:Black/White
Surface finishing:Immersion Gold, HASL, OSP
Max Panel size:18″*24″
Packing:Vacuum/Plastic bag
Layer:1 – 20 layers
