Superior & Trusted Flexible, Rigid-Flex & Rigid PCBs for Over 25 years

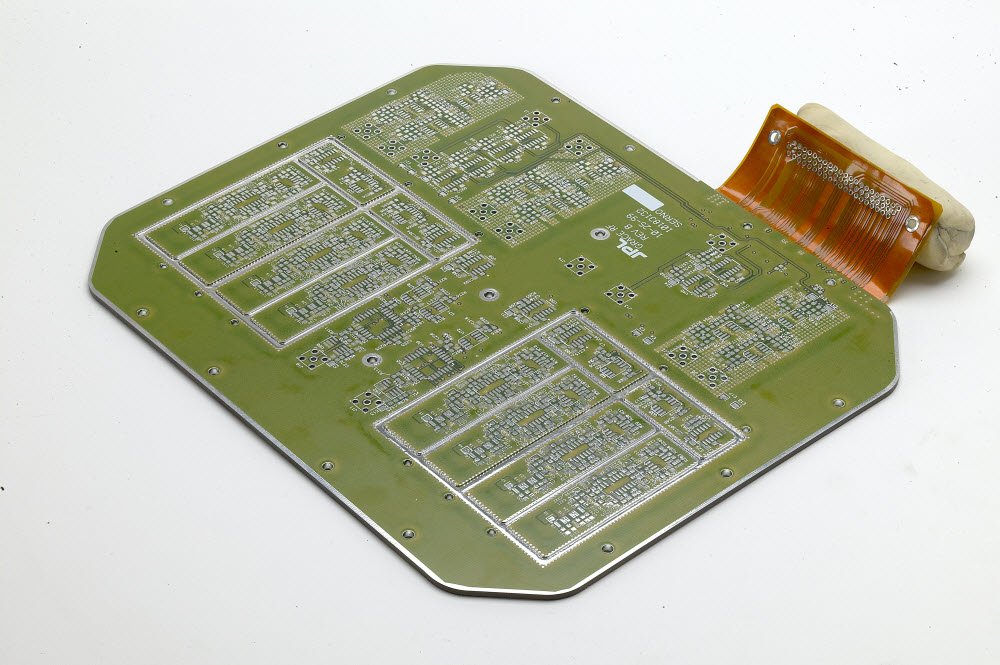

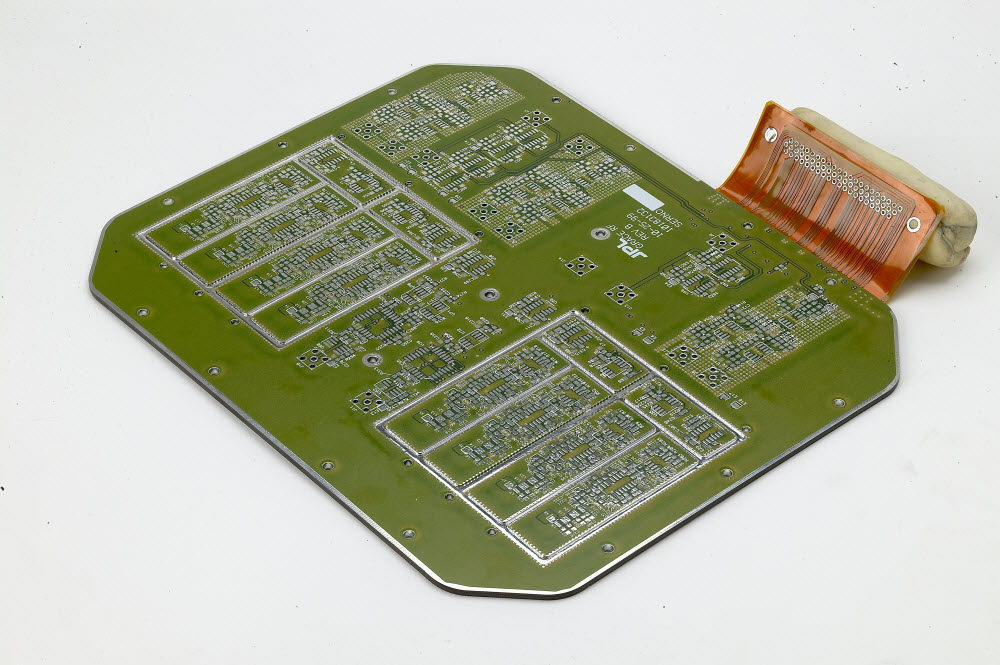

12 Layer Rigid-Flex PCB with 4 Layer Flex PCB with Edge Plating

When we think about PCBs, rigid printed circuit board is what strikes us initially. However, there are flex printed circuit boards available in a variety of configurations and find many applications across industries. They are also called flex boards or flexible electronics. Additionally, there are rigid-flex circuit boards made by a lot of Flex PCB manufacturers. They are a combination of rigid and flexible board technologies which enable a high spatial efficiency. They comprise a rigid board with multiple layers of flexible circuit substrates. By combining both, we offer umpteen configuration options. At Rigiflex, we provide rigid-flex PCBs in various combinations. Our 12 layer rigid-flex PCB with 4 layer flex PCB with edge plating finds application in various circuitries used across industries including defense, medical devices, electronic devices, and cameras

12 Layer Rigid-Flex PCB with 4 Layer Flex PCB with Edge Plating
Model: Rigid-flex board-12L
Layers: 12
Material: FR4+Polyimide
Surface treatment: HASL
Width/space: 4/4mil
Finish thickness: 0.2mm(flex), 1.6mm
Min Hot: 0.4mm

The 12 layer rigid-flex PCB with a breakaway panel. has four layers and is made of FR4 and polyimide. The thickness of the board ranges between 0.5mm and 3.0mm with a surface finish of immersion gold, HASL, or OSP. The soldering mask is available in white, black, blue, green, red, or Taiyo PSR4000 white. The legend/silkscreen color is either black or white. Its maximum panel size is 18ʺ*24ʺ”.

OEM Custom Service
Board Thickness :0.5mm~3.0mm (0.02″~0.12″)
Copper thickness: 0.5 OZ, 1.0 OZ, 2.0 OZ, 3.0 OZ, up to 6 OZ
Outline: Routing, punching, V-Cut
Solder mask: White/Black/Blue/Green/Red, Taiyo PSR4000 white
Legend/Silkscreen Color: Black/White
Surface finishing: Immersion Gold, HASL, OSP
Max Panel size: 18″*24″
Packing: Vacuum/Plastic bag
Layer: 1 – 20 layers
