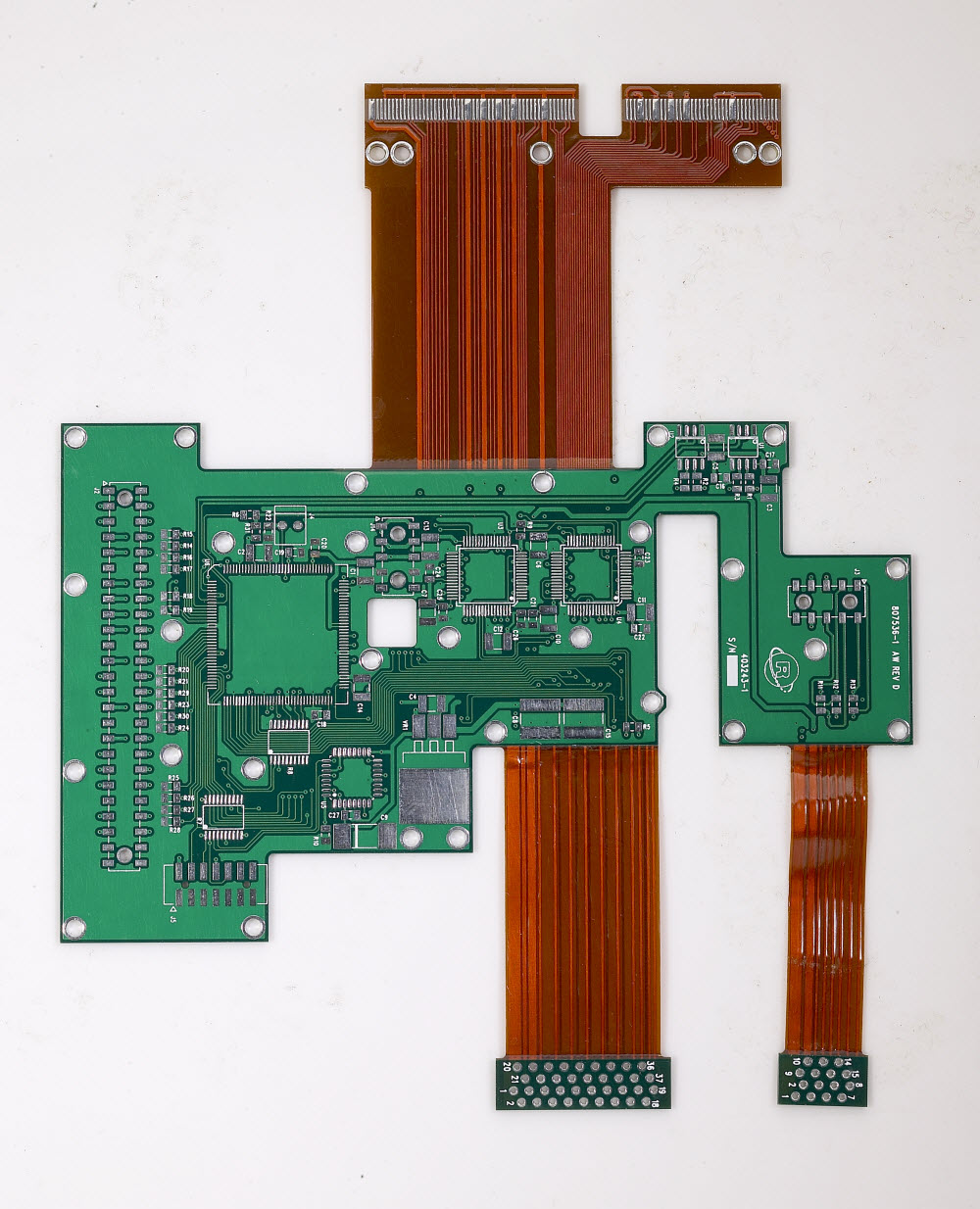

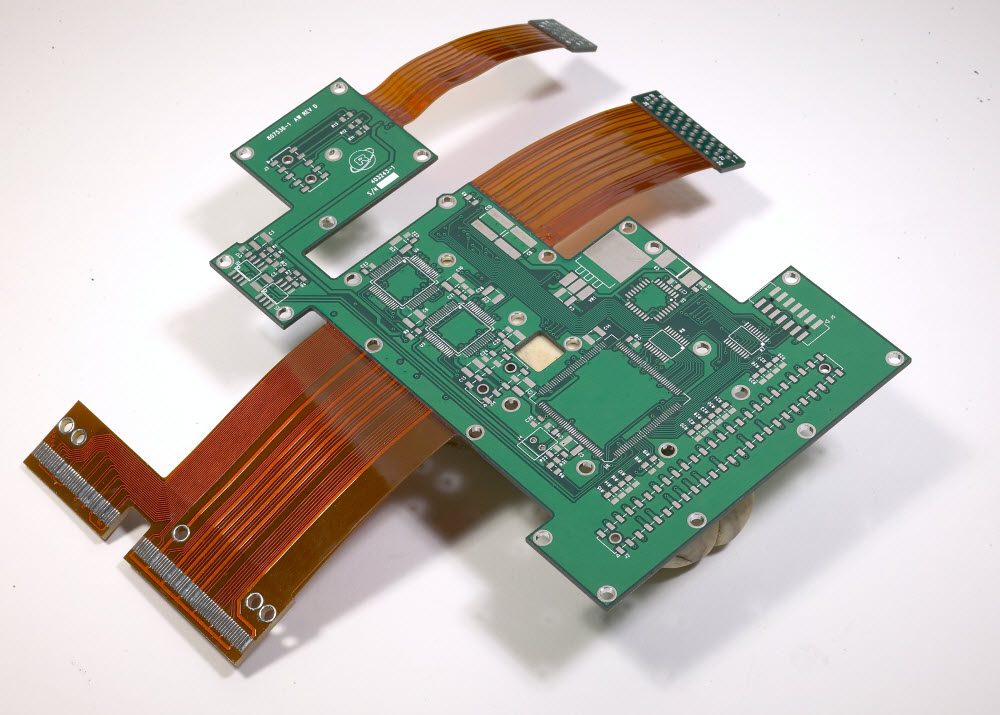

6 Layer Rigid-Flex PCB with 2 Layer Flex PCB with Unsupported Fingers



Often, the term fingers is used with the printed circuit board design. Fingers are nothing but the terminals located on the card-edge connectors. These fingers are most commonly plated with gold, and hence also referred to as gold fingers. The gold plating done on the fingers make them highly resistant to various types of acids. Thus, the printed circuit boards can perform for a longer period of time. In addition to this, the gold platting on these terminals help increase the overall strength and resistance of the PCBs in extremely harsh application environments. You can choose to go with supported or unsupported fingers while designing the printed circuit boards. Rigiflex is one of the leading, and well-known manufacturers of high-quality 6 layer rigid flexible printed circuit boards with 2 layer flex with unsupported fingers.

The model of this 6 layer rigid flex PCB is Rigid-flex Board-6L. As the name suggests, the circuit board has 6 layers, and is made from materials like polyimide, polyester (PET), and Kapton. We have the capability to manufacture these rigid-flex printed circuit boards in a variety of layer options varying from 1 layer to 20 layers. These PCBs can be manufactured using single sided (0.050 mm), double sided (0.075 mm), drilling plated through-hole (0.2 mm) methods. The conductor width of these PCBs is 0.025 mm, hole diameter is 0.05, accumulated pitch is 0.05 mm, and outline dimension is 0.05 mm. The insulation resistance of these circuit boards is 1000 MW, and the dielectric strength is 5 KV.

6 Layer Rigid-Flex PCB with 2 Layer Flex PCB with Unsupported Fingers
Model: Rigid-flex board-6L
Layers: 6
Material: FR4+Polyimide
Surface treatment: HARD GOLD+ENIG
Width/space: 4/4 mil
Finish thickness: 0.3mm(flex),1.6mm
Min Hot: 0.3mm

The 6 layer rigid-flex PCB with 2 layer flex PCB that we manufacture undergoes surface treatment with hard gold and ENIG. The width space of these printed circuit boards is 4/4 mil. They have a finish thickness of 0.3 mm (flex), 1.6 mm. You can choose from various solder mask options, which include white, black, blue, green, red, and Taiyo PSR4000 White. We provide these PCBs in various copper thickness, such as 0.5 OZ, 1.0 OZ, 2.0 OZ, 3.0 OZ, up to 6 OZ. The board thicknesses that we can provide are from 0.5 mm ` 3.0 mm (0.02″~0.12″). The silkscreen color can be selected from black, and white. The maximum panel size of these PCBs is 18″ x 24″. We provide surface finishing in immersion gold, HASL, and OSP. We have the capability to manufacture these printed circuit boards in 1 to 20 layers.

Rigiflex has always been ahead in providing its customers with high-quality printed circuit boards in varying capabilities and specifications. Our vast experience and consistency in providing quality products and services has made us one of the most preferred rigid flex PCB manufacturer in the US. Do you want to know more about our capabilities in providing 6 layer rigid flex printed circuit boards? Get in touch with our professionals today. For any specific PCB requirements, you can email us at pcboards@rigiflex.com, or call us at (714) 688-1500. You can also request a quote. We would be happy to help you.

OEM Custom Service
Board Thickness :0.5mm~3.0mm (0.02″~0.12″)
Copper thickness: 0.5 OZ, 1.0 OZ, 2.0 OZ, 3.0 OZ, up to 6 OZ
Outline: Routing, punching, V-Cut
Solder mask: White/Black/Blue/Green/Red, Taiyo PSR4000 white
Legend/Silkscreen Color: Black/White
Surface finishing: Immersion Gold, HASL, OSP
Max Panel size: 18″*24″
Packing: Vacuum/Plastic bag
Layer: 1 – 20 layers

SPECIFICATION

Materials

Polyimide

Polyester ( PET)

Remark&

(Kapton)

Test Method



1~20(Rigid-Flex &
Multilayers FPC)

1~2



Single Sided

0.050 mm



Double Sided

0.075 mm



Drilling P.T.H.

0.2 mm



Punching

1.0 mm



Conductor Width
(W)

0.025 mm

W0.5mm

Hole Diameter (H)

0.05 mm
(withP.T.H.0.1mm)

H1.5mm

Accumulated Pitch
(P)

0.05 mm
(Special0.03mm)

P25mm

Outline Dimension
(L)

0.05 mm

L50 mm

Conductors and Outline
(C)

0.15 mm (Special
0.07mm)

C5.0 mm

Conductors and
Coverlay

0.3~0.5 mm



Surface Treatment
on

Soft or Hard Ni/Au Sn/Pb
(2~60µm)

Primary FluxCarbon
Printed

4~10µm Silver Gel
printed



Terminals and land
Areas

Insulation
Resistance

1000MW

IPC-TM-650
2.6.3.2

at Ambient

Dielectric
Strength

5KV

IPC-TM-650
2.5.6.1

Surface Resistance
(W)

5×012

2×015

IPC-TM-650
2.5.17

Volume Resistivity
(W-cm)

1×015

1×015

IPC-TM-650
2.5.17

Dielectric Constant (1
MHz)

4

3.4

IPC-TM-650
2.5.5.3

Dissipation Factor (1
MHz)

0.04

0.02

IPC-TM-650
2.5.5.3

Peeling Strength (180
irection)

1.2kgf/cm

1.2kgf/cm

IPC-TM-650
2.4.9

Solder Heat
Resistance

260 .C/10secs

210 .C/3secs

Flammability

94 V-0

94VTM-0

UL94

Water Absorption

2.90%

1.00%

ASTM D570%

(24 Hours)
