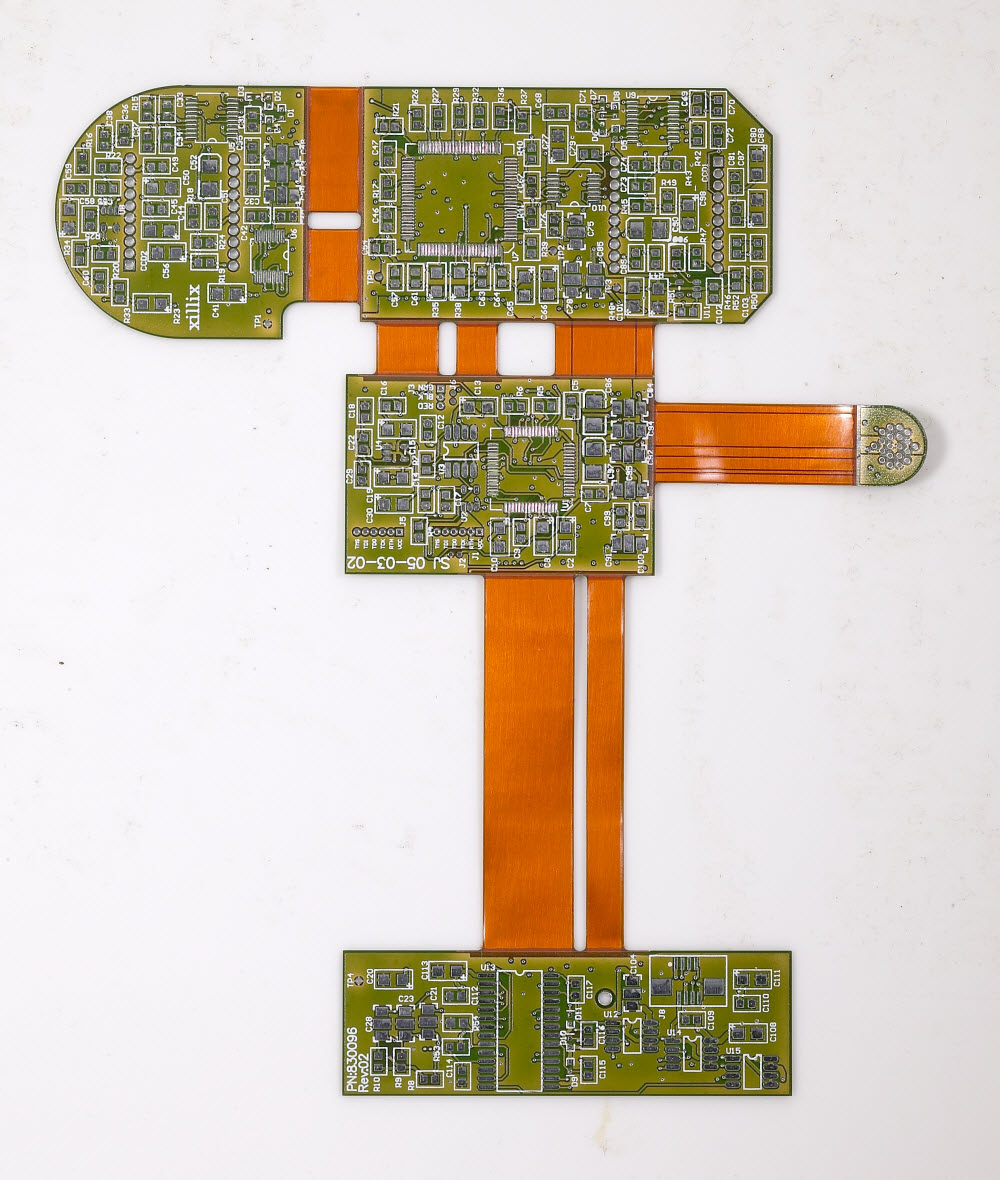

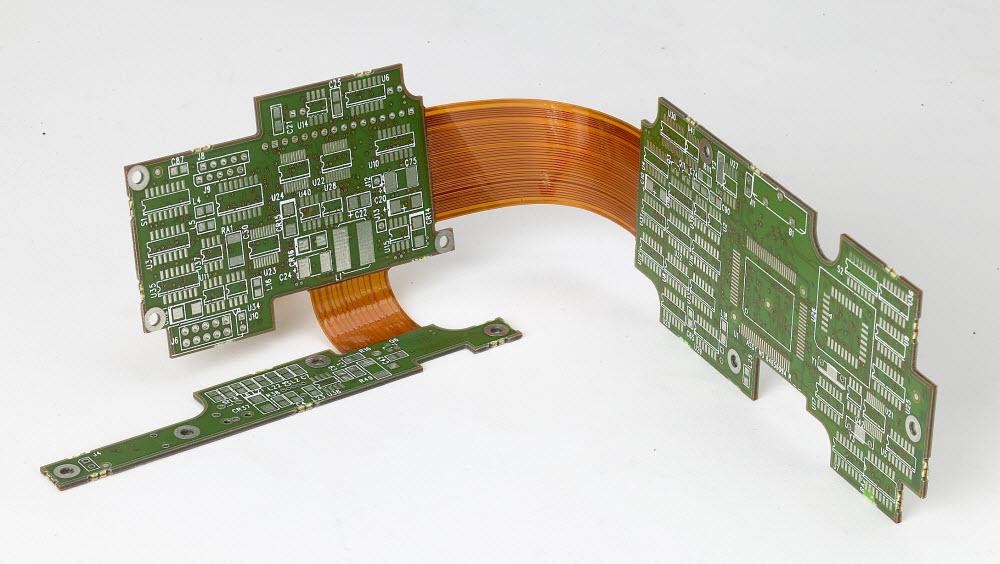

8 Layer Rigid-Flex Circuit Boards

Rigid-flex printed circuit boards combine rigid and flexible board technologies, and are known for their operational efficiency. Rigiflex provides a wide range of rigid-flex printed circuit boards that are regularly used by manufacturers, who manufacture transformers, inductors, stepper motors, planar magnetics, etc. We provide 8 layer rigid-flex circuit boards, which are used in various industrial, as well as consumer electronic applications. These circuit boards comprise alternate layers of flexible and rigid circuits that combine the best of both technologies.

The printed circuit board is manufactured using polyimide and FR4 material. This combination helps improve the thermal stability of the board, as well as makes it ideal for high-temperature applications. Additionally, the variety of surface finishing options such as immersion gold, OSP, and HASL, helps improve the performance of these PCBs in challenging conditions involving UV and radiations, oils, and harsh chemicals. The PCBs can be availed in either of two solder mask colors – black, and white.

8 Layer Rigid-Flex Circuit Boards
Model: Rigid-flex board-8L
Layers: 8
Material: FR4+Polyimide
Surface treatment: HASL
Width/space: 4/4 mil
Finish thickness: 0.2mm(flex), 1.6mm
Min Hot: 0.4mm

We, at Rigiflex, can work on specifications, which are complex, as well as challenging. For instance, this 8 layer rigid-flex circuit board can be availed in board thicknesses ranging from 0.5mm~3.0mm (0.02″~0.12″), and copper thicknesses 0.5 OZ, 1.0 OZ, 2.0 OZ, 3.0 OZ, up to 6 OZ. Also, we can assure the finish thickness of 0.2mm (flex), 1.6mm.

We employ fabrication methods such as scoring and break away routing, as well as punching and V-cut to create precise outlines. Our advanced laser drilling equipment enable us to provide drilled holes in sizes as small as 0.004″. Laser technology is also employed during the trimming and routing processes. Our advanced technology capabilities enable us to achieve the panel sizes up to 18″ x 24″, and various other complex dimensions.

All the printed circuit boards designed by us undergo rigorous testing before leaving the premises. These boards are considered ideal for applications, where space and weight can be a major concern. We have often concentrated on building circuit boards with lesser cables, connectors, and solder joints, while meeting a major requirement – a lightweight circuit board. This 8 layer rigid-flex printed circuit board is vacuum packed that helps avoid shocks during transport, and, aids us to stay true to our quality commitment. In addition to this 8 layer circuit board, we can provide these rigid-flex PCBs in any number of layers between 1 and 20. We can provide these printed circuit boards in a variety of layouts to meet the requirements of customers across various industries.

OEM Custom Service
Board Thickness 0.5mm~3.0mm (0.02″~0.12″)
Copper thickness: 0.5 OZ, 1.0 OZ, 2.0 OZ, 3.0 OZ, up to 6 OZ
Outline: Routing, punching, V-Cut
Solder mask: White/Black/Blue/Green/Red, Taiyo PSR4000 white
Legend/Silkscreen Color: Black/White
Surface finishing: Immersion Gold, HASL, OSP
Max Panel size: 18″*24″
Packing: Vacuum/Plastic bag
Layer: 1 – 20 layers
