8 Layer Rigid-Flex PCB with 4 Layer Rigid Flex Circuit Boards


Rigid flexible printed circuit boards (PCBs) have become one of the most preferred nowadays, since they combine the best of both, rigid and flexible circuit boards. There are a different types of rigid-flex PCBs, which have varying capabilities depending on the application for which they are designed. Rigiflex is one of the leading rigid flex PCB manufacturers of 8 layer Rigid-Flex PCB with a 4 layer rigid flex printed circuit boards.

We, at Rigiflex, have the capability to provide you 8 layer rigid flex PCB with 4 layer rigid flex circuit board in a wide range of specifications. The model of this PCB is Rigid-flex Board-8L. As the name suggests, the printed circuit board has 8 layers, however, we can manufacture these PCBs in varied layer options from 1 layer to 20 layers. The surface finishing of this rigid flex printed circuit board can be selected from HASL, immersion gold, and OSP. The maximum panel size of the printed circuit boards that we manufacture is 18″ x 24″. The surface treatment used for this printed circuit board is HASL. We provide you a choice to select from different solder mask colors, such as green, red, blue, black, Taiyo PSR4000 White, and white. You can select the legend/silkscreen from black, or white. We have the capability to provide you the 8 layer rigid-flex PCB with 4 layer rigid flex PCBs in board thicknesses varying from 0.5 mm ~ 3.0 mm (0.02″~0.12″). The copper thicknesses range from 0.5 OZ, 1.0 OZ, 2.0 OZ, 3.0 OZ, up to 6 OZ. The finish thickness is 0.2 mm (flex), 1.6 mm.

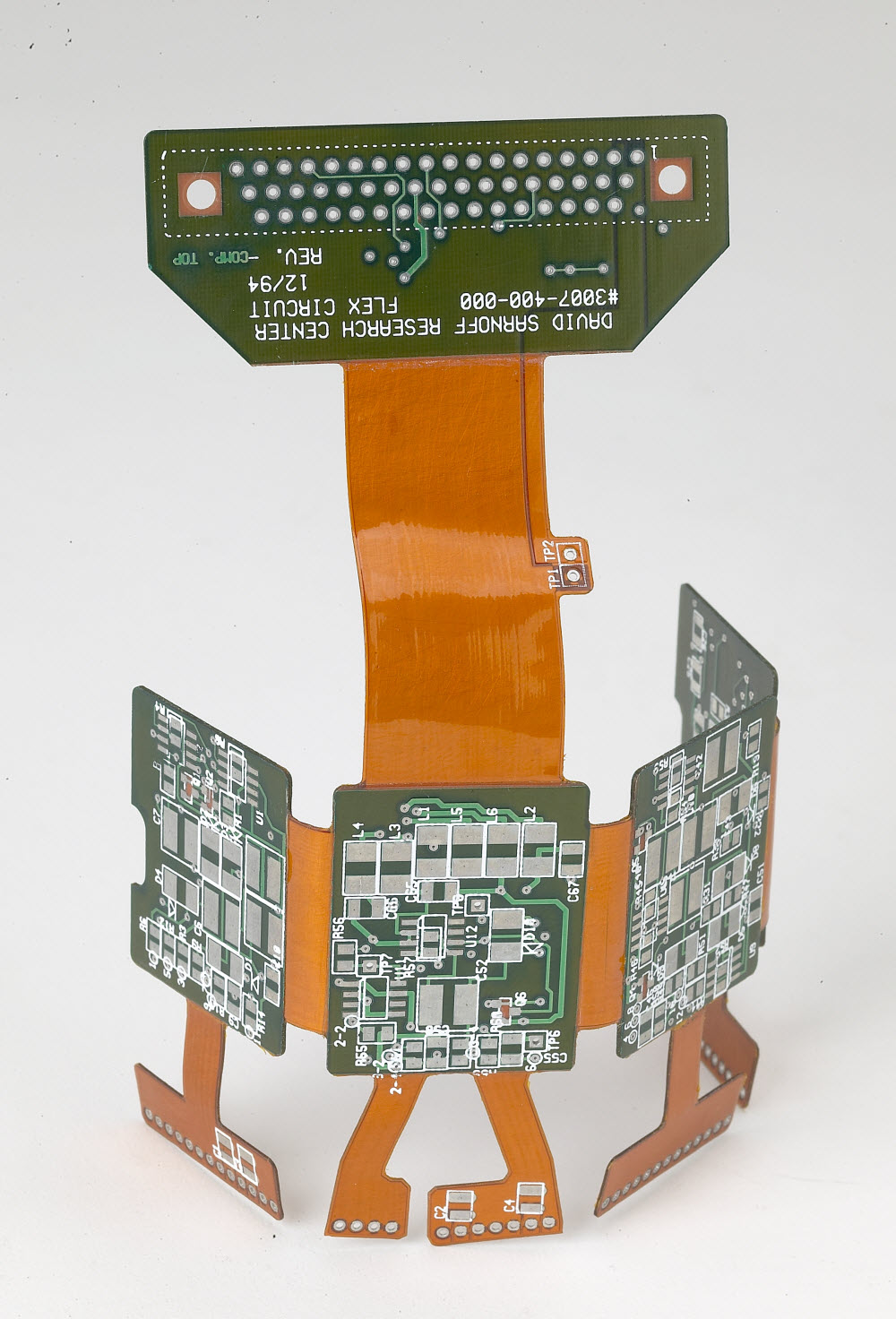

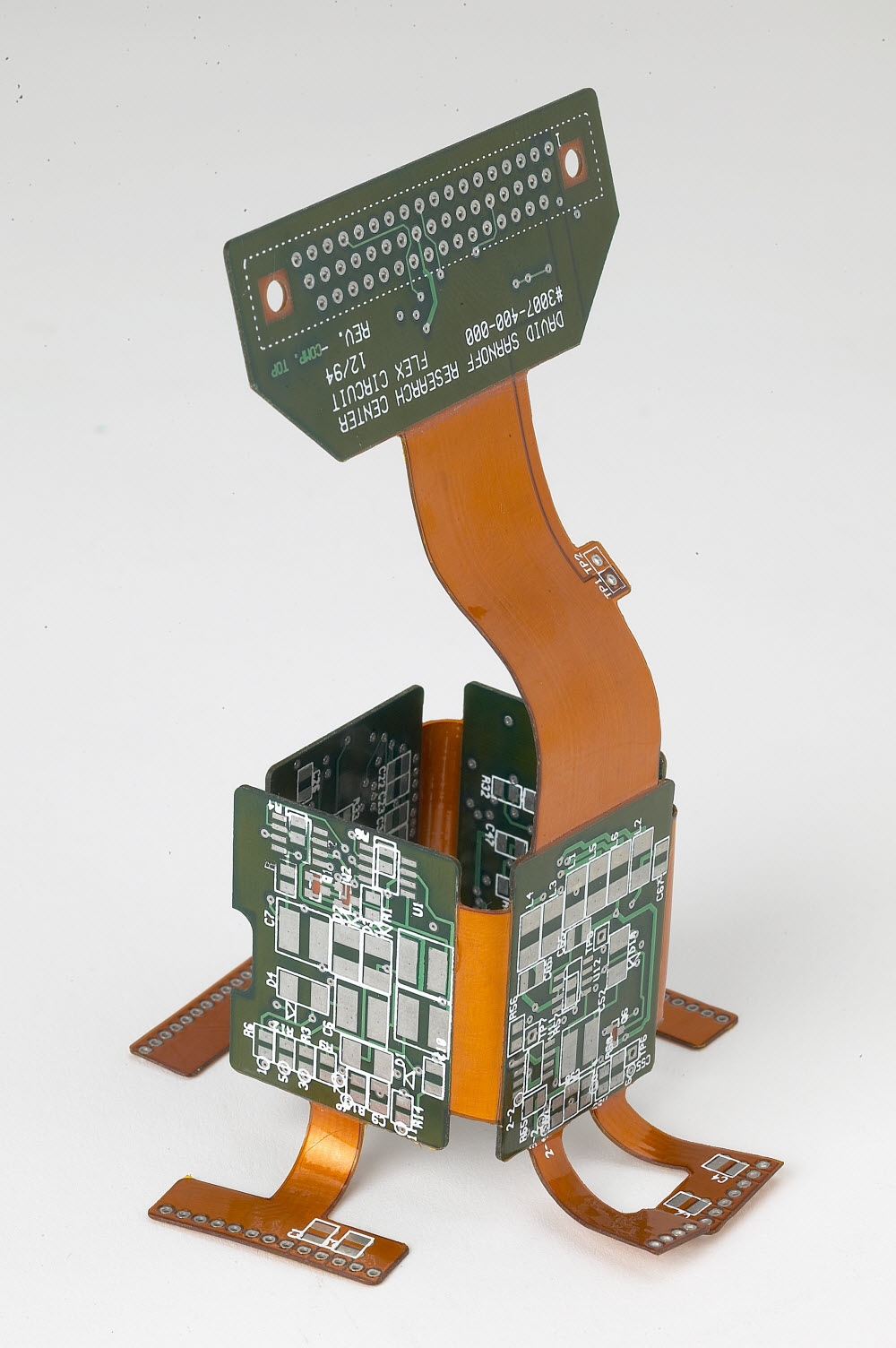

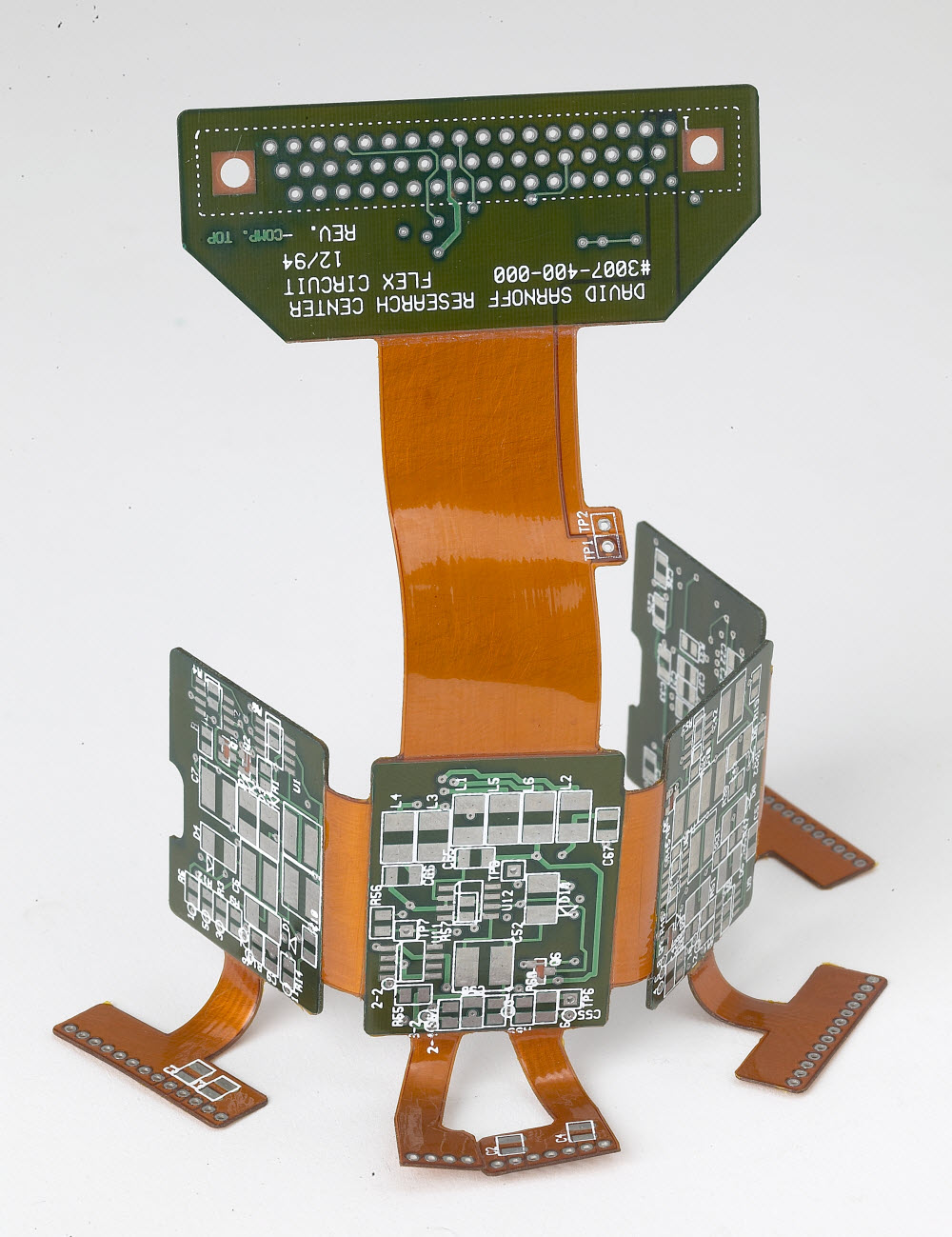

8 Layer Rigid-Flex PCB with 4 Layer Rigid Flex Circuit Boards
Model: Rigid-flex board-8L
Layers: 8
Material: FR4+Polyimide
Surface treatment: HASL
4/4 mil
Finish thickness: 0.2mm(flex), 1.6mm
Min Hot: 0.4mm

At Rigiflex, we always aim at providing the best quality products and services to our clients, and this has helped us build a trust among them. Our well-equipped facility allows us to design and build 8 layer rigid flex printed circuit boards with highest industry standards. Are you interested in knowing more? Get in touch with our experts today, and we would be happy to help you.

OEM Custom Service
Board Thickness 0.5mm~3.0mm (0.02″~0.12″)
Copper thickness: 0.5 OZ, 1.0 OZ, 2.0 OZ, 3.0 OZ, up to 6 OZ
Outline: Routing, punching, V-Cut
Solder mask: White/Black/Blue/Green/Red, Taiyo PSR4000 white
Legend/Silkscreen Color: Black/White
Surface finishing: Immersion Gold, HASL, OSP
Max Panel size: 18″*24″
Packing: Vacuum/Plastic bag
Layer: 1 – 20 layers
