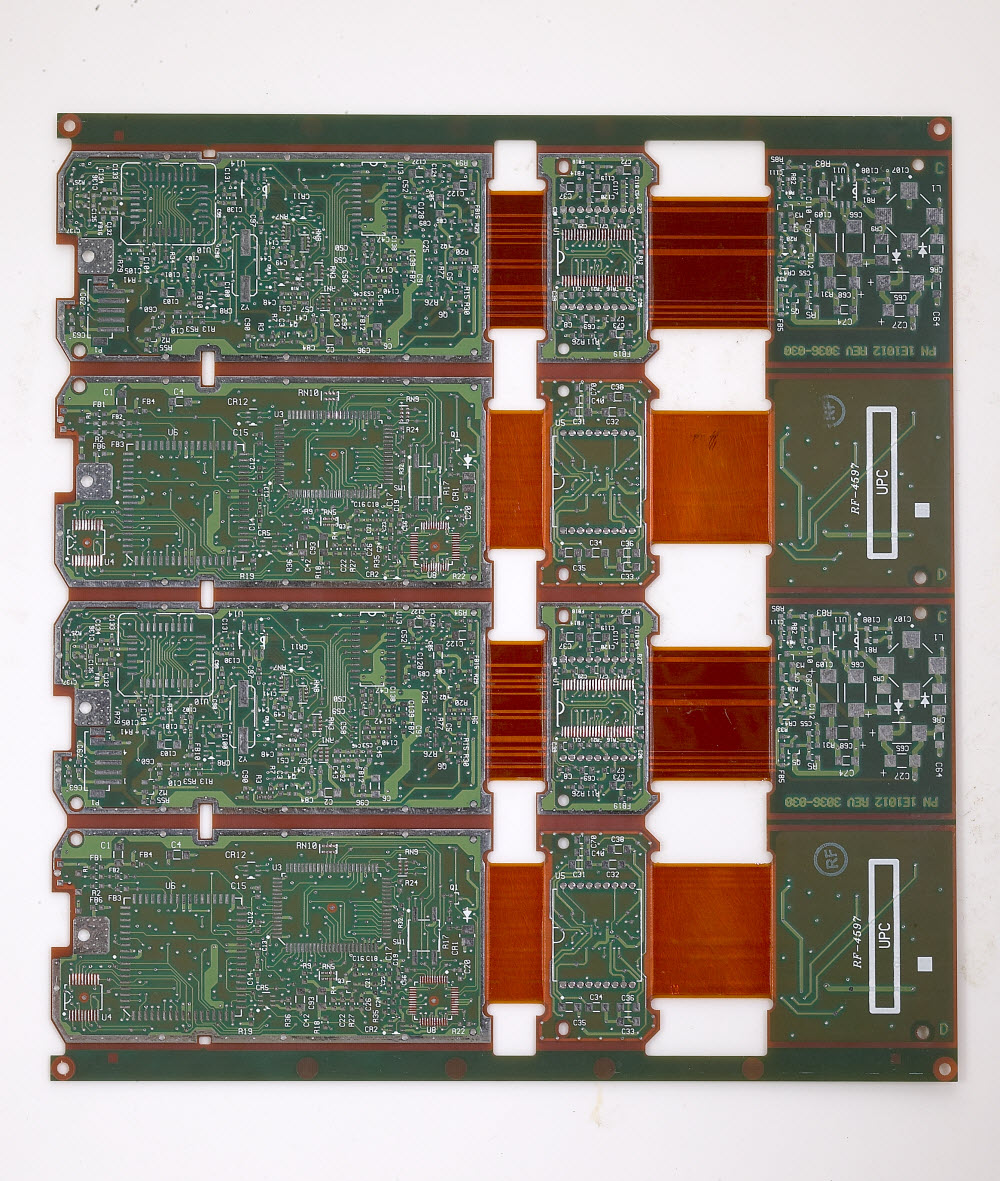

8 Layer Rigid-Flex PCB with Break Away Panel

Printed circuit boards are primarily of two types— flexible printed circuit board and rigid printed circuit board. Rigid PCBs are the commonly known ones. However, flexible printed circuit boards can be made available in a variety of configurations, and hence find many applications across industries. They are also called flex boards or flexible electronics. Flex PCB manufacturers also offer rigid-flex circuit boards. As the name suggests, rigid-flex boards are a combination of rigid and flexible board technologies which enable a high spatial efficiency. They comprise a rigid board with multiple layers of flexible circuit substrates. As a rigid-flex PCB manufacturer, Rigiflex, offers a variety of custom PCB design orders with extremely dense layers.

In the SMT line, additional board materials are required to facilitate the assembly process. Flex breakaway panels are added to the PCB to ensure an all-inclusive assembly with high levels of accuracy. This prevents any type of distortion of odd-shaped PCBs on the conveyor system. At Rigiflex, we use tab routing to create the breakaway panels. The panels also ensure that the corners of the PCB do not sag during processes such as reflow or wave soldering. Once attached to the PCB, the breakaway panels remain intact throughout the assembly process. They are removed only at the final stage before the PCB is sent for testing and inspection.

8 Layer Rigid-Flex PCB with Break Away Panel
Model: Rigid-flex board-8L
Layers: 8
Material: FR4+Polyimide
Surface treatment: HASL
Width/space: 4/4 mil
Finish thickness: 0.2mm(flex), 1.6mm
Min Hot: 0.4mm

These are some of the features of 8 layer rigid-flex PCB with breakaway panel. The 8 layer rigid-flex PCB with a break away panel has eight layers and is made of FR4 and polyimide. The board thickness ranges between 0.5mm~3.0mm with a surface finish of immersion gold, HASL, or OSP.

The soldering mask is white, black, blue, green, red, or Taiyo PSR4000 white. The legend/silkscreen color id either black or white. Its maximum panel size is 18ʺ*24 ʺ.

OEM Custom Service
Board Thickness :0.5mm~3.0mm (0.02″~0.12″)
Copper thickness: 0.5 OZ, 1.0 OZ, 2.0 OZ, 3.0 OZ, up to 6 OZ
Outline: Routing, punching, V-Cut
Solder mask: White/Black/Blue/Green/Red, Taiyo PSR4000 white
Legend/Silkscreen Color: Black/White
Surface finishing: Immersion Gold, HASL, OSP
Max Panel size: 18″*24″
Packing: Vacuum/Plastic bag
Layer: 1 – 20 layers
