6 Layer Rigid Flex Circuit Board Polyimide

At Rigiflex, we manufacture high-quality printed circuit boards (PCBs) of different types. One such most popular type of PCBs that we provide is the 6 layer rigid-flex polyimide circuit board. For manufacturing these PCBs, we make use of the FR4 and TG135 as the base materials of these boards. The polyimide material offers excellent mechanical properties and possess ability to resist heat. Besides this, the material is known to have some really good properties, such as thermal stability, high chemical resistance. Also, this material has an excellent tensile strength, which makes the material perfectly suited for the PCBs.

We, at Rigiflex, have the capability to manufacture rigid-flex printed circuit boards, with a total board thickness of 1.6 mm. The thermal stress that these PCBs can handle is 288 °C & 20 Sec. The finished hole size by a laser can be 5 mil, or 6 mil. We give you an option to choose from our wide ranging solder masks, which include color options like white, green, blue, black, and red. You can also select the desired silkscreen color from black, yellow, and white. The copper thickness of these circuit boards that we manufacture is 1 OZ. The minimum hole size that we offer is 4 mil. The peel strength of the 6 layer rigid-flex polyimide circuit boards is 1.4 N/mm. We provide a vast variety of surface finish options, which include HASL, lead-free HASL, immersion gold/tin/silver, OSP, flash gold, gold fingers, plating hard gold, and peelable mask.

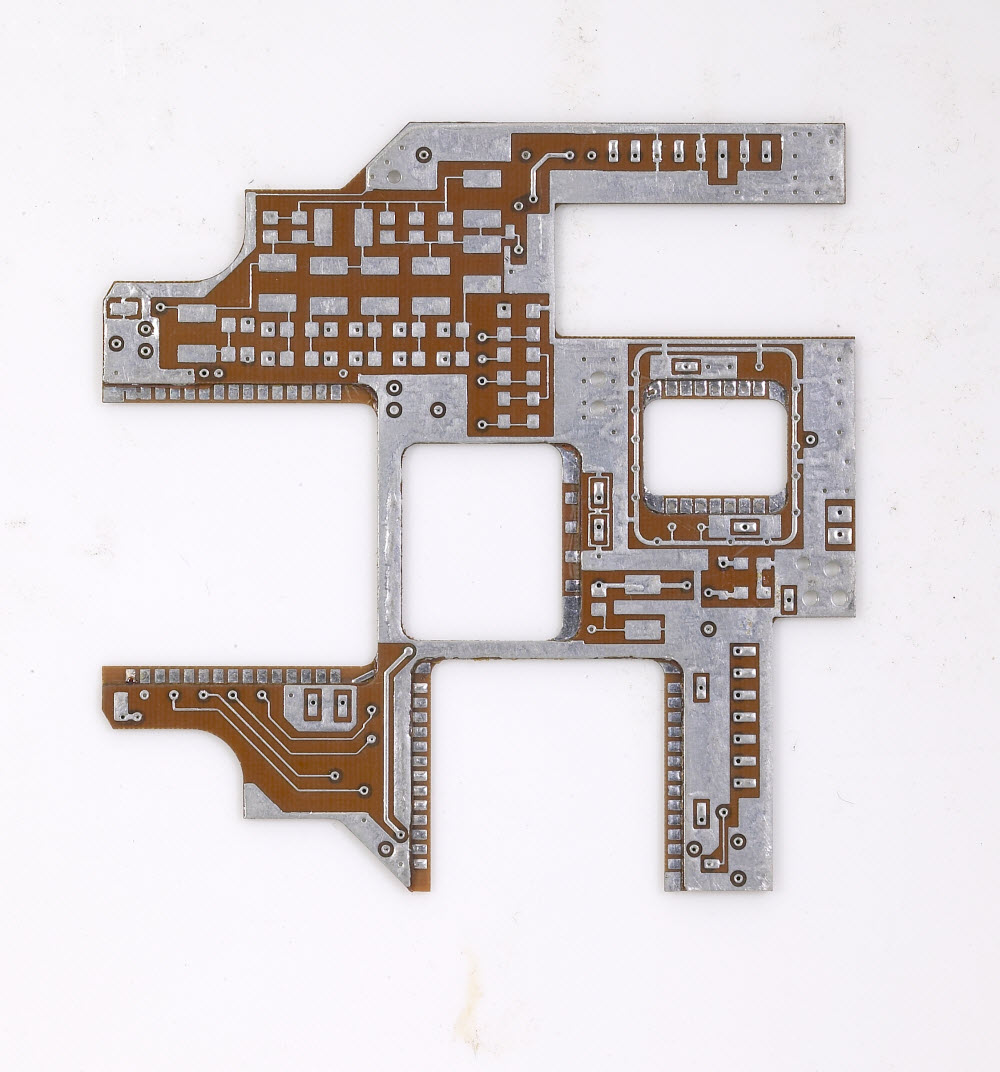

6 Layer Rigid Flex Circuit Board Polyimide
Model: 6L PCB
Base Material: 6L, FR4,TG135
Board Thickness: 1.6 mm
Copper Thickness: 1OZ
Min. Hole Size: 4mil
Min. Width/Gap: 4/5 mil
Surface Finishing: Gold
Rigid PCB Capability
No. Item Technical data
1 Layer Count 1-30Layers
2 HDI Type 1+N+1, 2+N+2
3 Material CEM3, FR-4, Halogen Free, Aluminum-based, Teflon, Rogers, Getek, Nelco, PTFE, Polyimide etc
4 Board thickness 0.2~5.0mm
5 Board Size Max. 18”x24”
Min. 30x50mm
6 Copper Thickness Outer layer 1oz~6oz
Inner layer Hoz~5oz
7 Min. Line Width/Space 4/4mil(0.1/0.1mm)
8 Finished Hole size Mechanical 0.20~6.30mm
Laser 5mil, 6mil
9 Blind/buried via(Mechanical) 0.2mm (min)
10 Aspect Ratio 10:1
11 Hole Dia.Tolerance PTH ±0.075mm(3mil)
NPTH ±0.05mm (2mil)
12 Hole Position Tolerance ±0.05mm (2mil)
13 Bow & Twist ≤0.75%
14 Peel strength 1.4N/mm
15 Thermal stress 288℃ & 20 Sec
16 Test Voltage 50-300V
17 Soldermask color Green, Red, Blue, Black, White
18 Silkscreen color White, Black, Yellow
19 Min. S/M Pitch 4mil(0.1mm)
20 Min. Solder Mask Clearance 0.05mm
21 Impedance Control Tolerance +/-10%
22 Outline Tolerance ±0.10mm (4mil)
23 Surface Finish HASL, Lead free HASL, Immersion Gold/Tin/Silver, OSP, Flash Gold, Gold fingers, Plating Hard Gold, Carbon lnk, Peelable mask
